VPX Power Supplies
Our supplier Dawn is the leader in VITA 62 compliant power supplies for the mission critical market. Wide range of standard features, highly configurable through custom firmware.

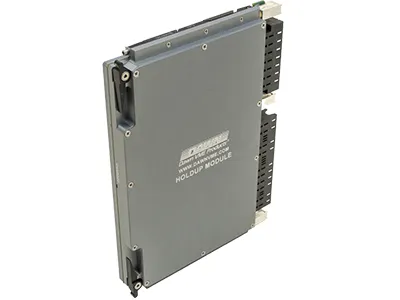

HLD-6262
6U VITA 48.2 Holdup Module Compatible with PSC-6265
Dawn’s HLD-6262 Holdup Module works in conjunction with our PSC-6265 6U power supply to overcome input power interruption gaps in the normal input power source of up to 50 msec, as specified by MIL-STD-704F.

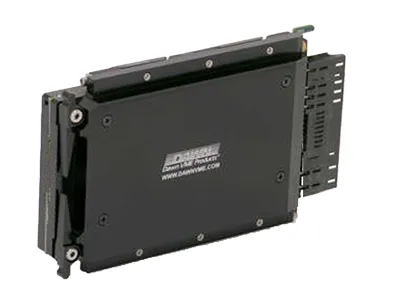

HLD-6724
3U VITA 62 Holdup Module Compatible with PSC-6234/6238
400W Hold-up Module for supporting MIL-STD-704 Hold-up of 50 msec with PSC-6234/PSC-6238. If higher holdup loads are needed or multiple PSC-6234/6238 units are used, add additional HLD-6724 modules (400W per module added).

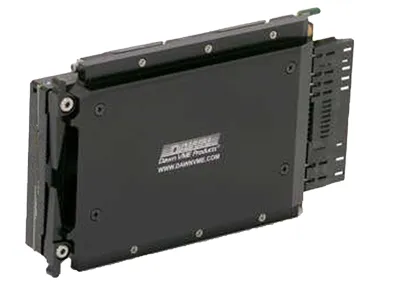

HLD-6726
3U VITA 62 Holdup Module Compatible with PSC-6236
400W Hold-up Module for supporting MIL-STD-704 Hold-up of 50 msec with PSC-6236. If higher holdup loads are needed or multiple 6236 units are used, add additional HLD-6726 modules (400W per module added).

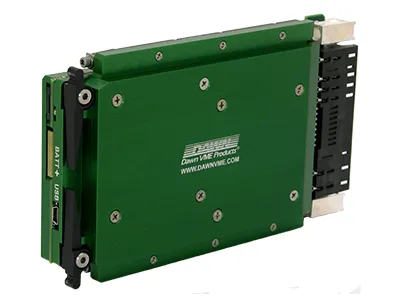

PSC-6234
3U VITA 62 / 400W 28VDC Input Conduction Cooled
PSC-6234 3U 400-Watt 6-channel plug-in or bulkhead mounted Power Supply for conduction cooled OpenVPX systems. Designed for mission critical applications. 1″ form factor. VITA 62 power connector. Reverse side wedge locks. Dawn’s embedded RuSH technology provides intelligence for precision monitoring and control. Many non-standard features are available through custom firmware.

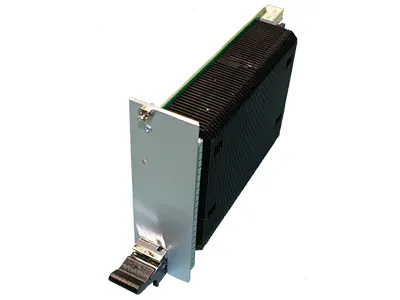

PSC-6234
3U VITA 62 / 400W 28VDC Input Air Cooled
VITA 62 3U 400 Watt 6-Channel Plug-in or Bulkhead Mounted Power Supply for Air Cooled OpenVPX Systems. Designed for mission critical applications. VITA 62 power connector. Reverse Side Wedge Locks. Dawn’s embedded RuSH technology provides intelligence for precision monitoring and control. In addition to a wide range of standard features, many non-standard features are available through custom firmware.

PSC-6236
3U 400W Universal AC Input Conduction Cooled
Universal AC input, 3U 400 Watt 6 channel plug-in or bulkhead mounted Power Supply for Conduction Cooled OpenVPX Systems. Designed for mission critical applications. VITA 62 power connector. Dawn’s embedded RuSH technology provides intelligence for precision monitoring and control. In addition to a wide range of standard features, many non-standard features are available through custom firmware.

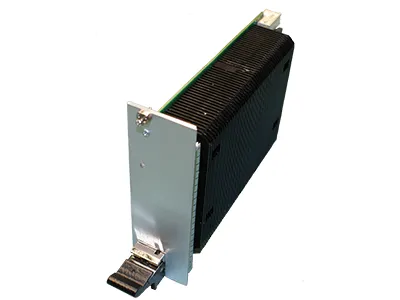

PSC-6236
3U 400W Universal AC Input Air Cooled
3U VITA 62 compliant 6 channel Power Supply for Air Cooled OpenVPX systems. Embedded RuSH™ technology. Wide range standard features, additional features by custom firmware. Current sharing up to four modules.

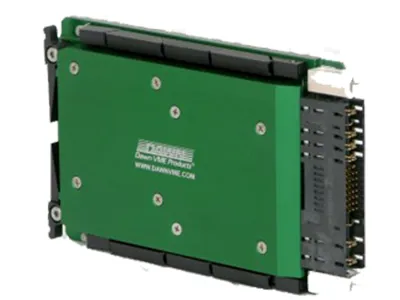

PSC-6238
3U VITA 62 / 800W 28VDC Input Conduction Cooled
3U VITA 62 OpenVPX. Wide temperature range at high power. Extended shock and vibration compliant. Onboard real-time clock. Switchable Battleshort and NED functions. Embedded RuSH™ technology.

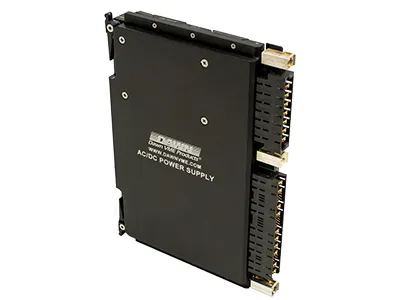

PSC-6265
6U VITA 62 / 580W Universal AC Input Conduction Cooled
Universal AC input VITA 62 compliant 6U power supply. Run up to three supplies in parallel. Wide temperature range at high power levels.

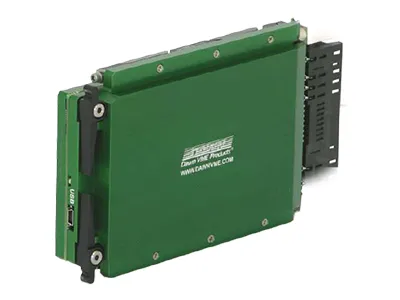

PSC-8742
3U VITA 62 Low Power High Efficiency with Integrated Hold-up
20W to 190W low power, high efficiency 28V DC/DC power supply with MIL-STD-704 Hold-up of 50 msec integrated for 135W load. Available in Standard VPX and SOSA VPX versions.

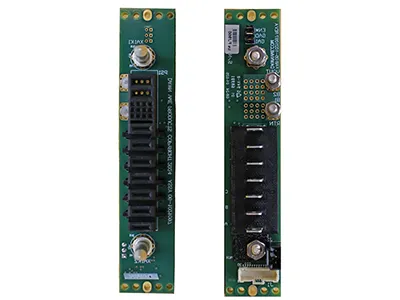

PSD-1097
3U VITA 62.1 Single Slot Power Backplane
Power Supply Docking Board/Backplane provides all necessary features and functionality required to add a 3U power backplane to a VPX system.

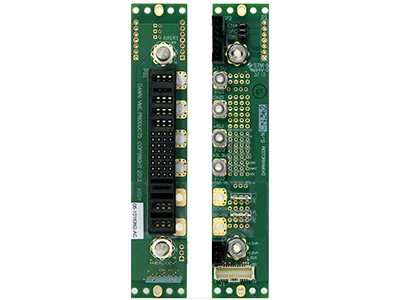

PSD-6362
3U VITA 62 Single Slot Power Backplane
3U VITA 62 compliant 500 watt 6 channel plug-in VPX power supply docking board/backplane. Designed for quick addition of power to VPX platforms.
